Contract Concealed Door Closer - ZDC003C-SE

Name: Contract Concealed Door Closer - ZDC003C-SE
Brand: Zoo Hardware
SKU: ZDC003C-SE
Availability: InStock
Rating: 5.0 (1 reviews)

Brand: Zoo Hardware

SKU: ZDC003C-SE

Manufacturer part number: ZDC003C-SE

GTIN: 5055364167765

Delivery date: 1-3 days

£57.76 inc VAT

Contract Concealed Door Closer - ZDC003C-SE

With / without intumescent kit

Intumescent not required (ZDC003C-SE)
Supplied with itumescent kit (ZCD003C-SE + ZCD003C-INT/KIT)

Qty:

+ -

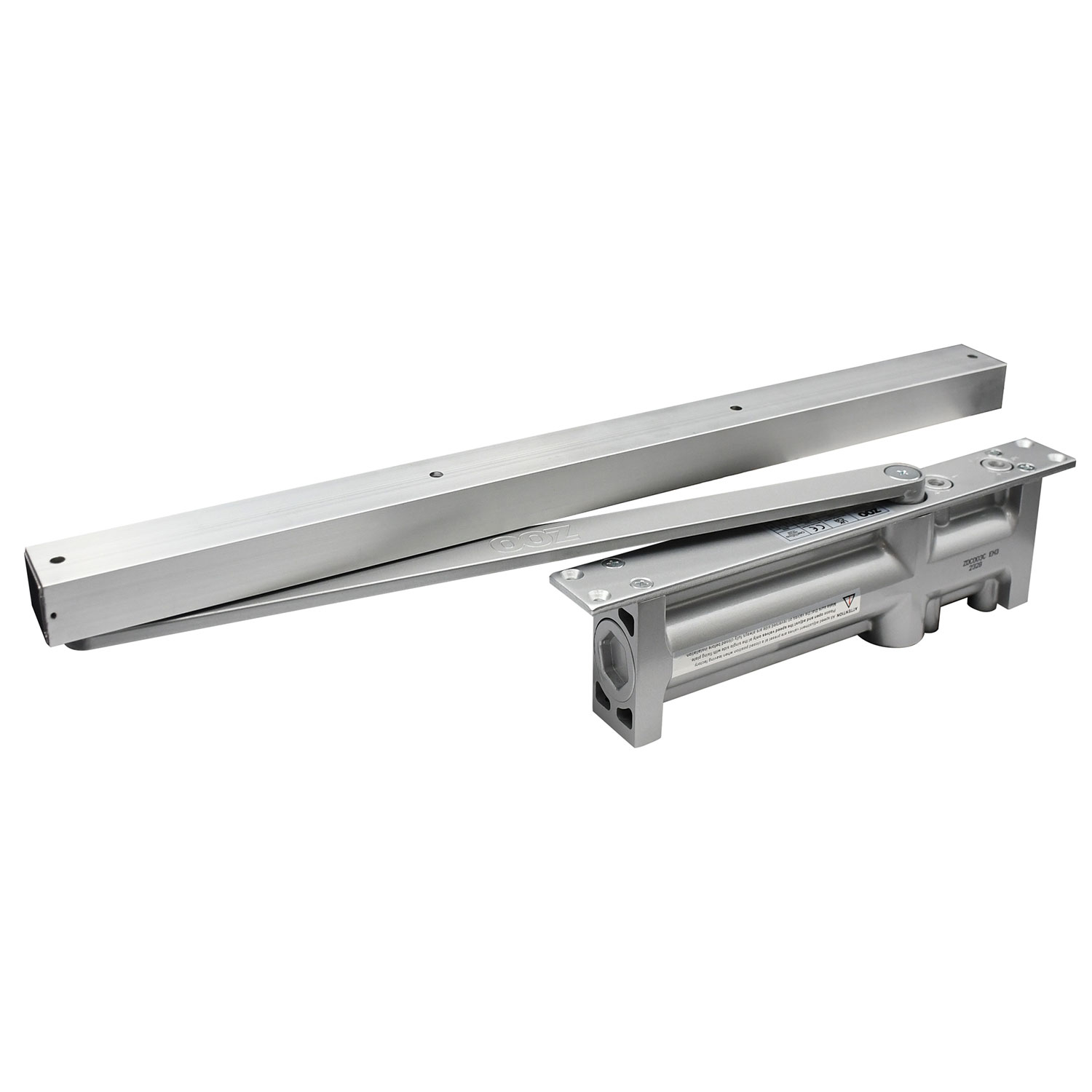

Concealed overhead door closer for rebating into the door and door frame.
The door closer is not visible on the door when fitted; only the arm and guide rail can be seen when the door is open.
For use on 44mm thick fire doors only.

KEY FEATURES

Fixed power, size 3.
Slide Track / Aluminium; Connecting Arm / Steel.
Adjustable closing speed and latching speed.
Max. door weight 60kgs.
Max. door width 950mm.
Successfully tested in accordance with the requirements of BS EN1154: 1997.
Successfully fire tested in accordance with the requirements of BS EN1634-1, suitable for use on 30-minute Timber fire doors.
UKCA Marked.
CE Marked.
CERTIFIRE approved.
Intumescent (ZDC003-INT/KIT) 1mm / 2mm graphite kit for 30-minute timber fire-rated doors.
Hold open kit available (NOT TO BE USED ON FIRE RATED DOORS)

Please see our guide to door closers for an explanation of door closer features, installation examples and certification.

A guide to door closers.
