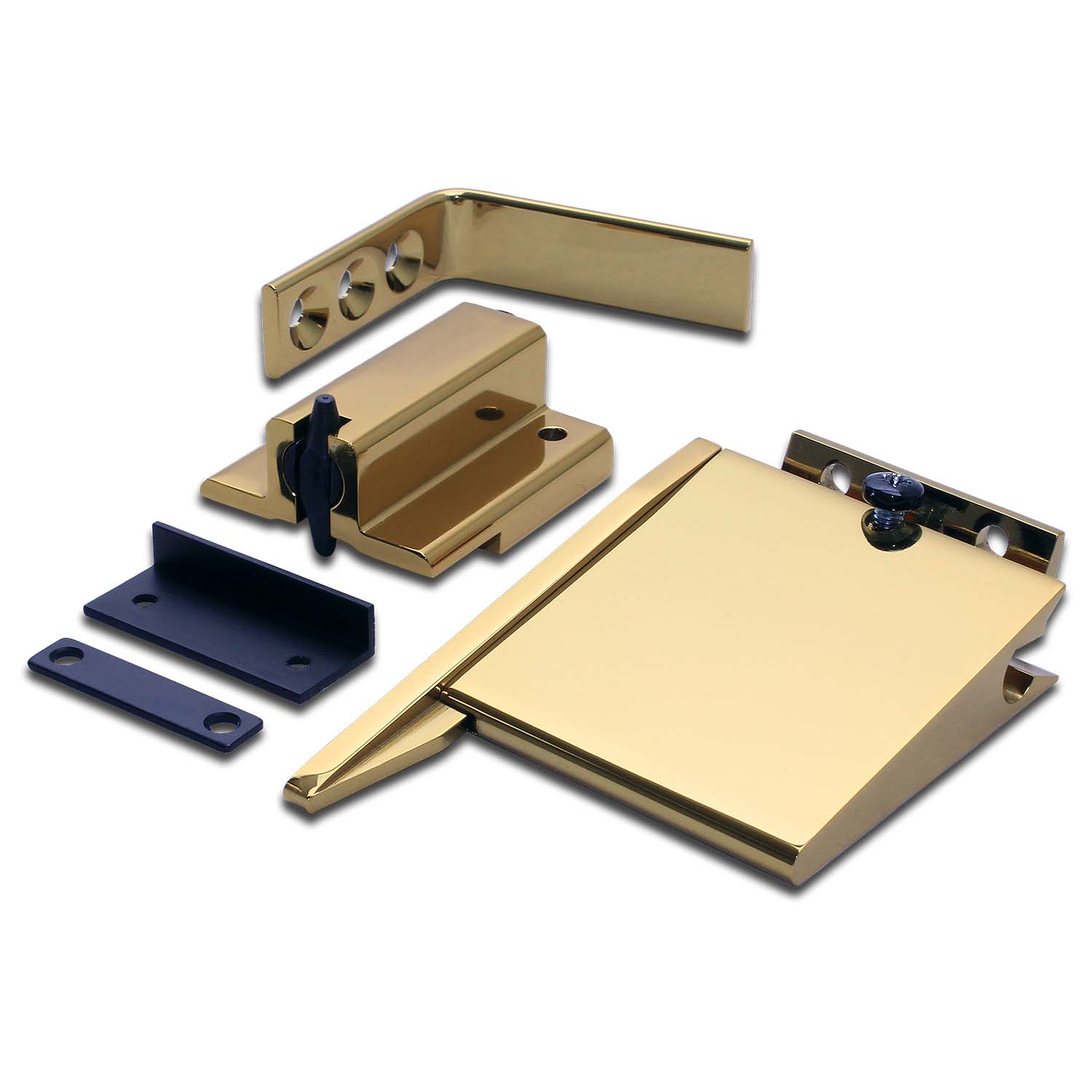

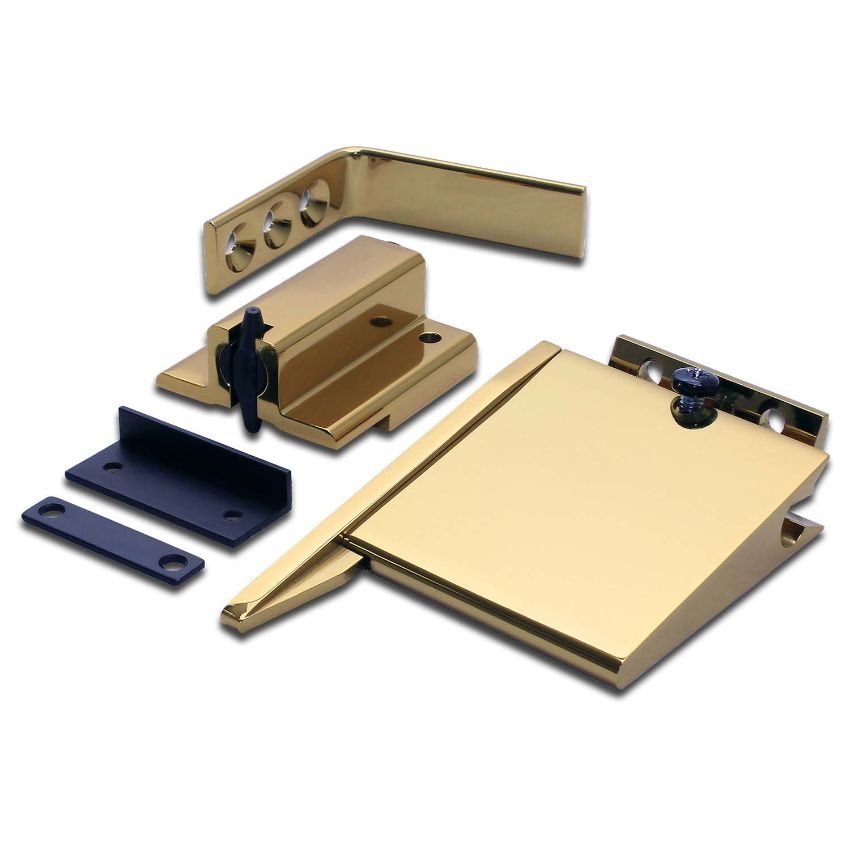

Double Rebated Door Selector- ZDS0036-PB

Features

• Door selector for use on double rebated doors, which controls the correct closing sequence of doors fitted with door closers.
• Manufactured from aluminium for durability and corrosion resistance.
• Suitable for use on double rebated doorsets.
• For use with door closer sizes for power size 3 to 6.
• Made in the UK to high manufacturing standards.
• Designed for door leaf widths of 700 mm–1000 mm and thicknesses of 38 mm–58 mm (maximum rebate 25 mm).
• Successfully tested in accordance with BS EN 1158 for use on timber and steel doors weighing up to 120 kg.
• CE Marked, UKCA Marked, and UL Listed for assured performance and compliance.
• Supplied complete with standard 102 mm arm and extended rebate arm (152 mm / 202 mm).

Fire tested in accordance with BS EN 1634-1:

• Suitable for use on up to 120-minute timber and 240-minute steel fire-rated door sets.
