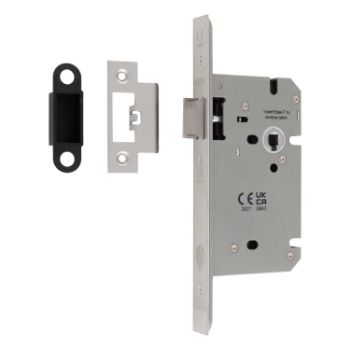

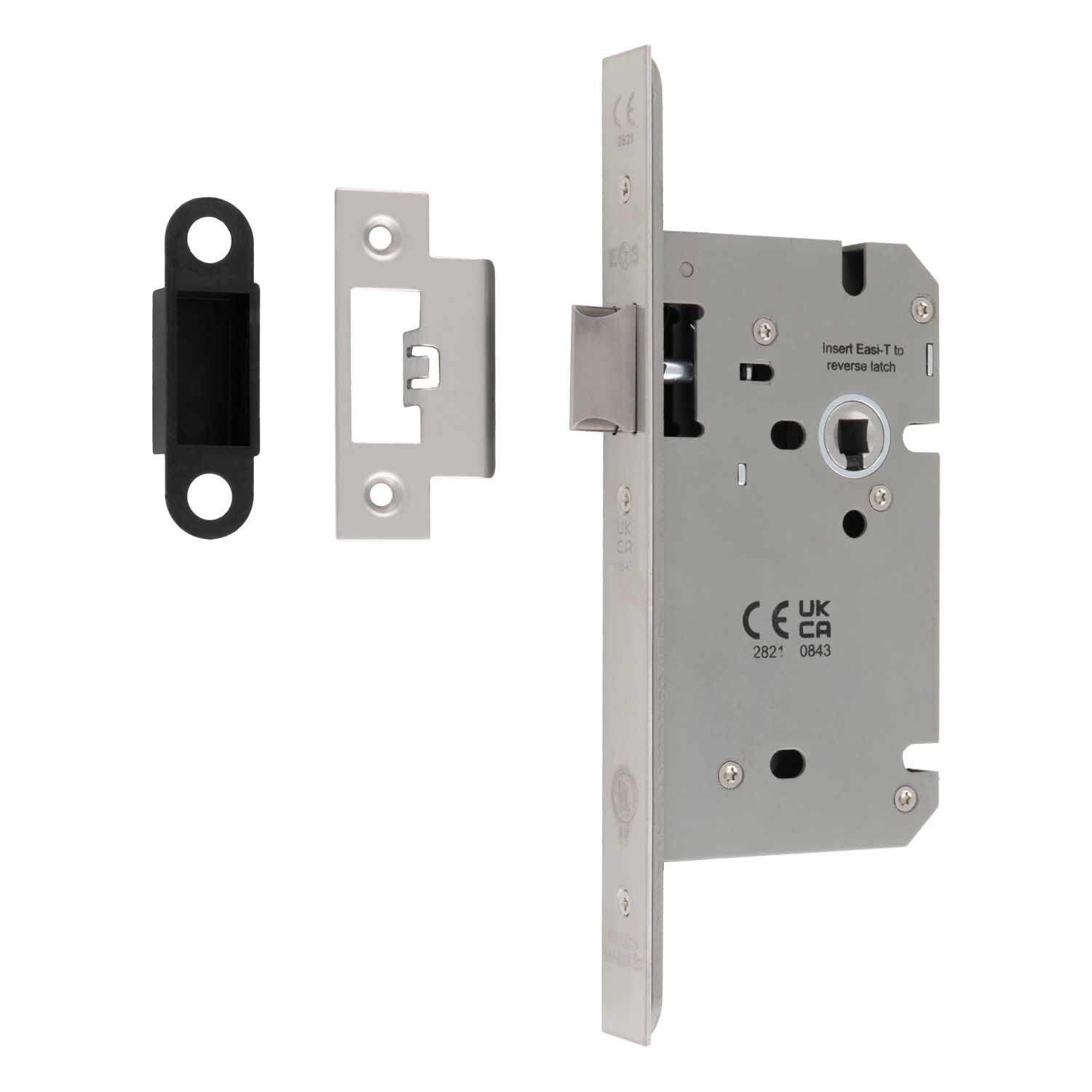

Easi-T Architectural Din Latch- DLS0060LSSS

A DIN standard lock is a heavy-duty lock case produced to European standards. They provide a superior feel and product lifespan; however, please note that DIN lock cases are larger than standard UK locks and are only recommended for use on fire doors due to the size of the mortice required in the door.

This product is a DIN latch, designed for use with lever handles to provide smooth and reliable door operation without locking.

Key Features

• DIN mortice latch
• 60mm backset
• Grade 304 stainless steel latch bolt
• Sculpted latch design for smooth, quiet operation
• 24mm forend, available in square or radius options
• Tested to EN 12209 Grade M durability (200,000 cycles)
• CE & UKCA marked
• UL-EU third-party accredited for added assurance
• 10-year mechanical guarantee

Fire Performance

• FD30 / FD60 rated for timber fire doors
• FD120 / FD240 rated for steel fire doors
• Compatible with Intumescent Kit ES1274

Standards & Certification

• Conforms to BS EN 12209:2003 / AC:2005
• Certified under the Construction Products Regulation (CPR)
• UL-EU Safety Mark accredited

Available in radius and square versions:

A square lock faceplate and door striker is a rectangular shape to be fitted traditionally with a hammer and chisel.

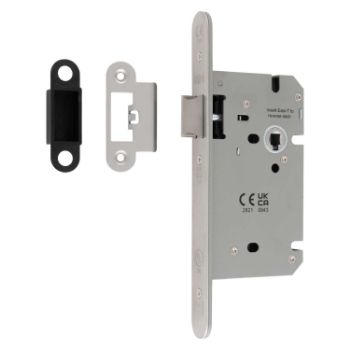

A radius lock faceplate and striker plate are rounded at the top and bottom and are designed to be fitted using a router; this provides a neater finish and allows for quicker installation.

Please check with your joiner if unsure.
