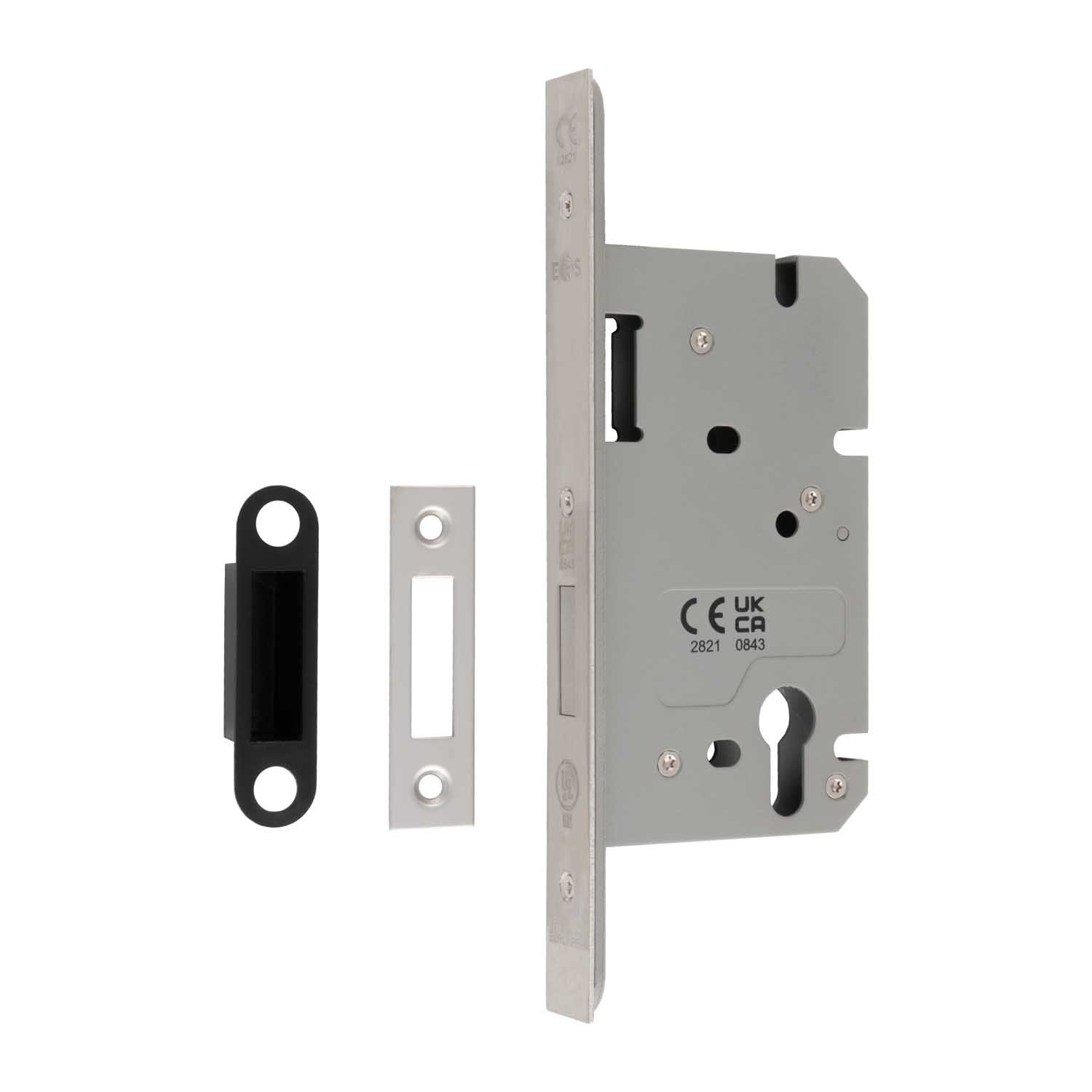

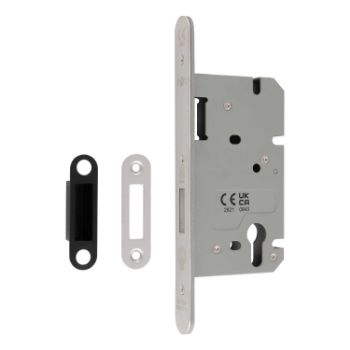

Easi-T Din Euro Profile Deadlock- DLS0060EPSSS

A DIN standard lock is a heavy-duty lock case produced to European standards. They provide a superior feel and product lifespan; however please note that the lock cases are larger than standard UK locks and are only recommended for use on fire doors due to the size of the mortice in the door.

This product is a deadlock, used to lock the door securely.

Key Features.

• DIN Euro profile deadlock – compatible with euro cylinders
• 60mm backset
• 20mm single throw stainless steel deadbolt (Grade 304)
• 24mm forend, available in square (DLS0060EPSSS) or radius (DLS0060EPSSS/R) options
• Tested to EN 12209 Grade M durability (200,000 cycles)
• CE & UKCA marked
• UL-EU third-party accredited for added assurance
• 10-year mechanical guarantee

Fire Performance.

• FD30 / FD60 rated for timber fire doors
• FD120 / FD240 rated for steel fire doors
• Compatible with Intumescent Kit ES1274

Standards & Certification.

• Conforms to BS EN 12209:2003 / AC:2005
• Certified under the Construction Products Regulation (CPR)
• UL-EU Safety Mark accredited

Available in radius and square versions.

• A square lock faceplate and door striker is a rectangular shape to be fitted traditionally with a hammer and chisel.
• A radius lock faceplate and striker plate are round at the top and bottom to be fitted using a router; this provides a neater finish and is quicker to install.

Please check with your joiner if unsure.
