Ghost 3D Concealed Hinges- CH60WH

The Ghost Concealed Hinge CH60WH in Silver provides a premium, fully concealed solution for flush, unrebated timber doors. Designed for both residential and commercial use, this hinge delivers a strong, smooth and silent operation while maintaining a seamless flush finish.

Key Features:

• Suitable for flush, unrebated quality timber doors
• Finish: White
• 3D adjustable – height, depth and lateral movement
• Material: Zinc
• Concealed fixings with removable cover plates
• Fire rated: FD30 (with 1mm Graphite Flexifire – sold separately)
• Door weight capacity: up to 60kg (when using 3 hinges)
• Maintenance-free design
• Supplied with fixings: 2 Allen keys, 8 stainless steel wood screws, 4 cover plates
• Suitable for internal use – residential and commercial applications
• Mechanical warranty: 5 years

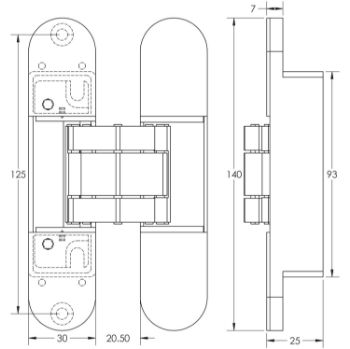

Dimensions:

• Size: 140mm
• Overall size: 140 x 25 x 79.5mm
• Projection: 7.5mm
• Fixing centres: 125mm
• Thickness: 7mm
• Suitable door thickness: 35–44mm

These hinges are priced and supplied in single units.
