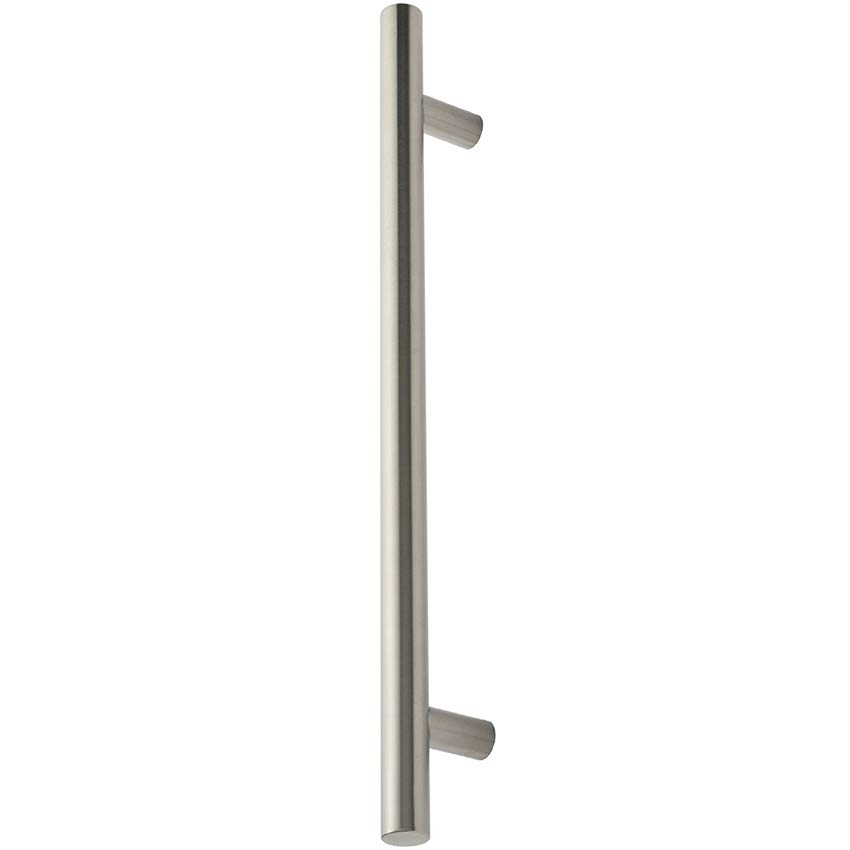

Inline Bar Handle - Brushed Stainless Steel - DHBHIN-304

• Brushed Stainless Steel Bar Handle.
• S Series Range by Fab & Fix.
• Grade 304 stainless steel.
• 32mm Bar diameter.
• 85mm Projection from the door face.
• Priced and Supplied in Singles with a 10 Year Warranty.

Available Sizes:

• 400MM Length (two fixings). Fixing centres = 200mm
• 600MM Length (two fixings). Fixing centres = 400mm
• 800MM Length (two fixings). Fixing centres = 600mm
• 1000MM Length (two fixings). Fixing centres = 800mm
• 1200MM Length (two fixings). Fixing centres = 1000mm
• 1400MM Length (three fixings). Fixing centres = 400mm
• 1600MM Length (three fixings). Fixing centres = 466mm
• 1800MM Length (three fixings). Fixing centres = 533mm

Fixing Options

• Rear Fix - Bolts through the door and a brushed stainless steel cap is visible in the inside of the door.
• Hidden Fixings - The bolts are screwed into the door and the pull handle fixes to the bolts so no fixings are visible (suitable for timber doors only).
• Back to Back Fixings - Used when mounting two of the same pull handles on each side of the door.
