Sliding Door Lock - FB81MB

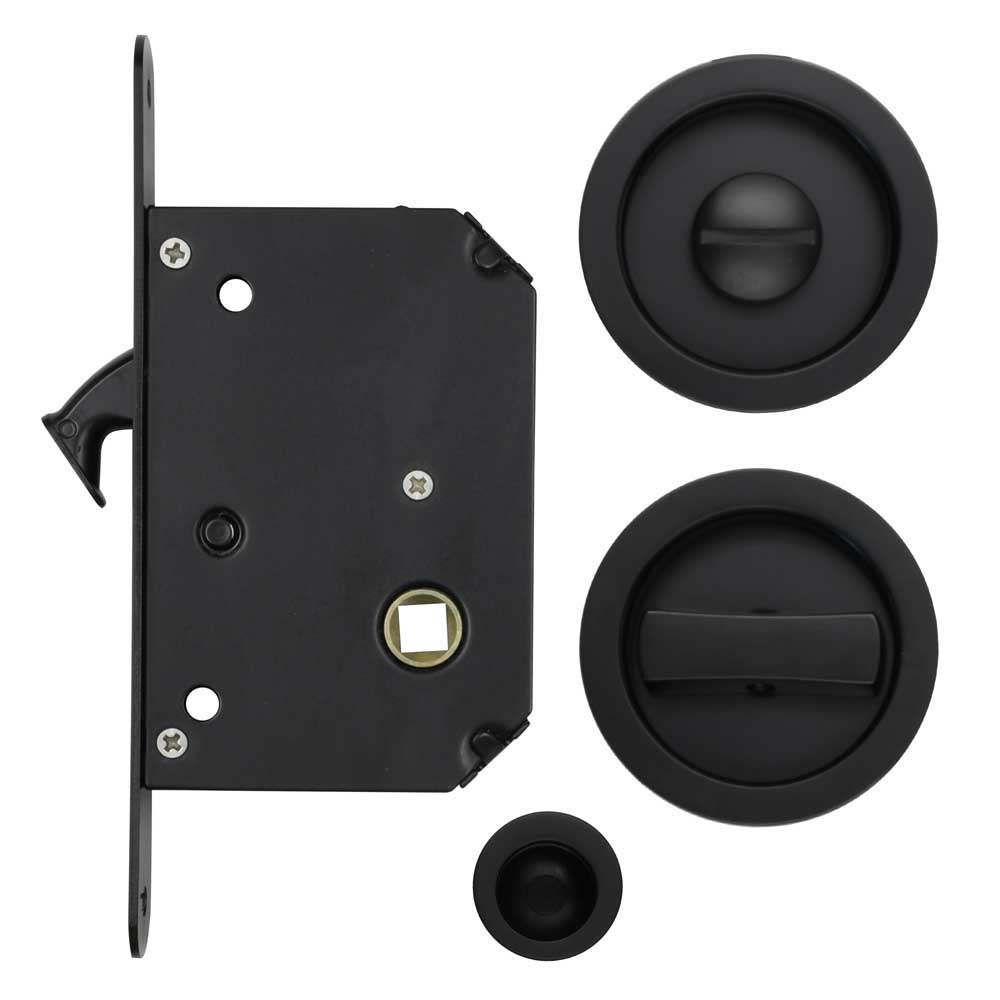

The Fulton & Bray Sliding Door Lock Set is a high-quality, complete lock solution designed for sliding and pocket doors. Crafted from brass-based components, it is ideal for use in bathrooms, wet rooms, or any internal space where functionality meets refined design. This well-engineered set includes flush circular pull handles, a hook lock mechanism, and an integrated thumb-turn for internal locking. The external pull features an emergency coin release, ensuring both safety and accessibility. When unlocked, the hook lock sits completely flush, maintaining a clean, modern look.

KEY FEATURES

• Material: Brass-based components for corrosion resistance.
• Finish: Matt Black.
• Design: Fully flush fitting when installed, ideal for modern, minimalist interiors.
• Usage: Suitable for bathrooms, wet rooms, and internal pocket doors.
• Flush Pulls: 60mm diameter; internal pull with thumb-turn, external pull with coin release.
• Lock Mechanism: Hook lock that retracts flush when unlocked.
• Door Suitability: Fits standard UK doors 35mm–45mm thick.
• Installation: Includes recessed 30mm x 30mm edge pull for doors that fully recess into pockets.
• Supplied: Complete set with all parts and fixings.
• Manufacturer: Fulton & Bray – known for combining elegant design with high-performance hardware.

DIMENSIONS

• Flush Turn & Release: 60mm dia x 11mm depth
• Edge Pull: 29mm dia x 22mm depth
• Lock Faceplate: 16mm (W) x 160mm (H) with radius ends
• Keep: 18mm (W) x 90mm (H)
• Backset: 50mm (faceplate edge to pull center)
• Lockcase Width: 70mm
