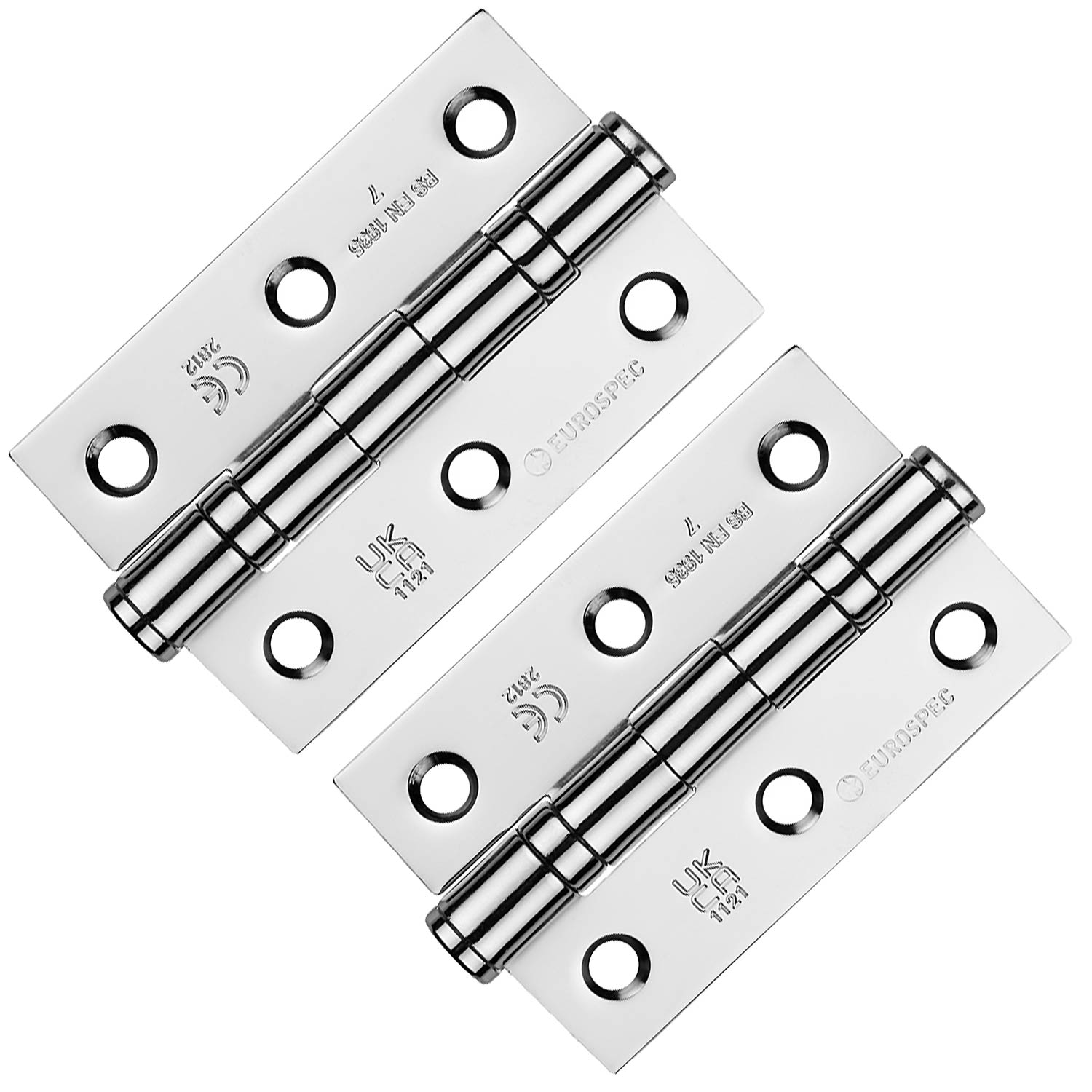

3" (76mm) Satin Chrome Ball Bearing Hinges - HIN1322/7CP

76mm (3") Ball Bearing Internal Door Hinge features a smooth, reliable action and a durable steel construction. Finished in polishedchrome, this hinge is ideal for standard 35mm thick internal timber doors.

Product Details

• Hinge Type: 2 ball bearing butt hinge for smooth and reliable door operation.
• Finish: Polished chrome.
• Material: Manufactured from 2mm thick steel for strength and durability.
• Door Compatibility: Suitable for standard 35mm thick internal timber doors.
• Lightweight Doors: Two hinges per door are recommended.
• Solid Internal Doors: Three hinges per door are recommended for additional support.
• Fire Rating: Suitable for use on 35mm thick FD30 (30-minute) fire doors when fitted with three hinges per door, subject to the relevant fire door certification.
• Fixings: Supplied with matching fixing screws for easy installation.
• External Use: Not suitable for external doors or outdoor applications.
• Supplied: Priced and supplied in pairs with matching screws.
• Guarantee: Covered by a 5-year manufacturer's warranty.

Product Dimensions

• Hinge Height: 76mm (3")
• Hinge Width: 50mm (2")
• Hinge Thickness: 2mm
• Bearings: 2 ball bearings per hinge

Product Testing

• Successfully tested in accordance with the requirements of BS EN 1935:2002. Grade 7.
• Successfully tested in accordance with the requirements of BS EN 1634-1, suitable for use on 30 minute timber fire doors.
• UKCA Marked.
• CE Marked.

Please Note: For solid internal doors and FD30 fire doors, three hinges are required per door. As these hinges are supplied in pairs, additional hinges will need to be purchased separately.
