Antique Brass Overhead Door, Size 2 - 4 – antique Brass Overhead Door, Size 2 - 4. Suitable for controlled automatic door closing. Check the dimensions, fixing method and compatible door hardware before ordering.
Antique Brass Overhead Door, Size 2 - 4 – Door Closing Hardware

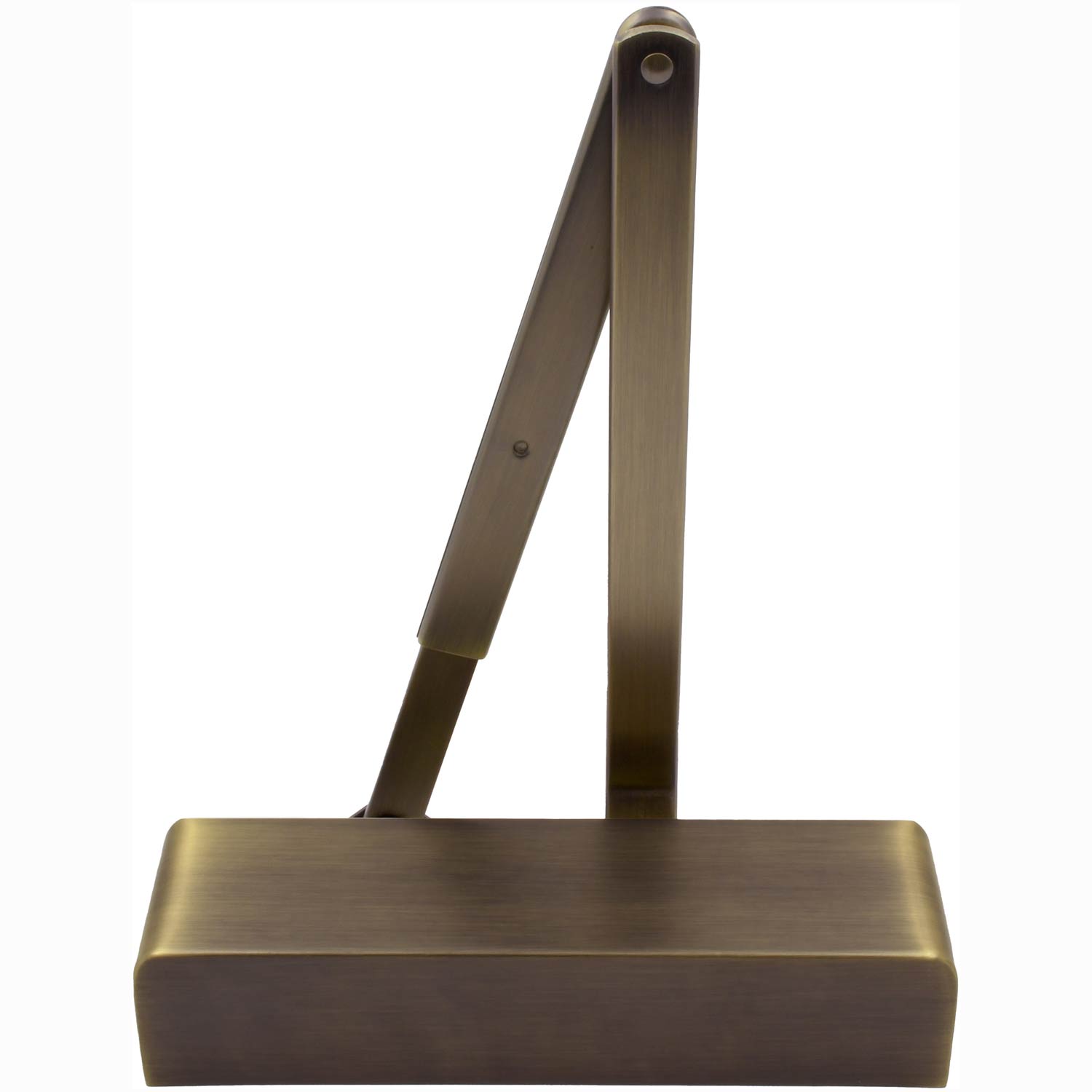

Antique Brass Overhead Door, Size 2 - 4 is a overhead door closer designed for controlled automatic door closing. Its antique brass finish provides a coordinated appearance with surrounding door furniture.
Suitable for applications requiring an overhead closing mechanism. Choose the correct closing power and mounting arrangement for the door weight, width and usage.
Product Features & Specifications
A quality door closer for use in both commercial and residential applications, supplied with matching fig66, parallel arm bracket for all mounting applications.
PRODUCT FEATURES
- Power size: Power adjustable 2-4, by spring.
- Body material: Aluminium.
- Arm set type / material: Scissor / Steel .
- Functions: Tested functions – Closing, latching speed and backcheck for installation on: – Door mount pull (Fig 1) – Door mount push (Fig 6) – Frame mount push (Fig 61) installed with no head projection only.
- Maximum door weight: 80kgs (door mount pull, frame mount push) 60kgs (door mount push).
- Maximum door width: 1100mm (door mount on pull ise, frame-mounted on push side) 950mm (door mounted on push side).
- Performance Testing: Successfully tested in accordance with the requirements of BS EN1154: 1997.
- Successfully tested in accordance with the opening force recommendations and requirements contained within BS 8300 / Approved Document M for door closing devices and is suitable for the following minimum door widths: – Door mount pull (Fig 1) = 857mm – Door mount push (Fig 6) = 689mm – Frame mount push (Fig 61) – No head projection = 917mm
– Frame mount push (Fig 61) – 50mm head projection = 910mm
FIRE TESTING
- Successfully fire tested in accordance with the requirements of BS EN1634-1, suitable for use on 30, 60, 90 and 120-minute timber fire doors.
CERTIFICATION
- UKCA marked (Certificate AD7992).
- CE marked (Certificate AD7994).
- CERTIFIRE approved (Certificate CF6103).
Please see our guide to door closers for an explanation of door closer features, installation examples and certification.
A guide to door closers.
Fitting & Compatibility
Confirm fixing centres, handing where relevant, and compatibility with the latch or lock fitted to the door.
