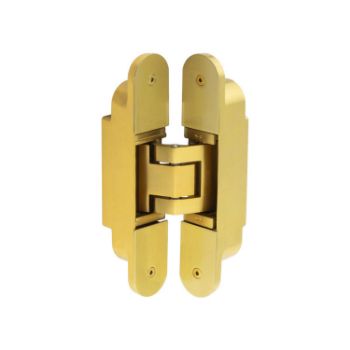

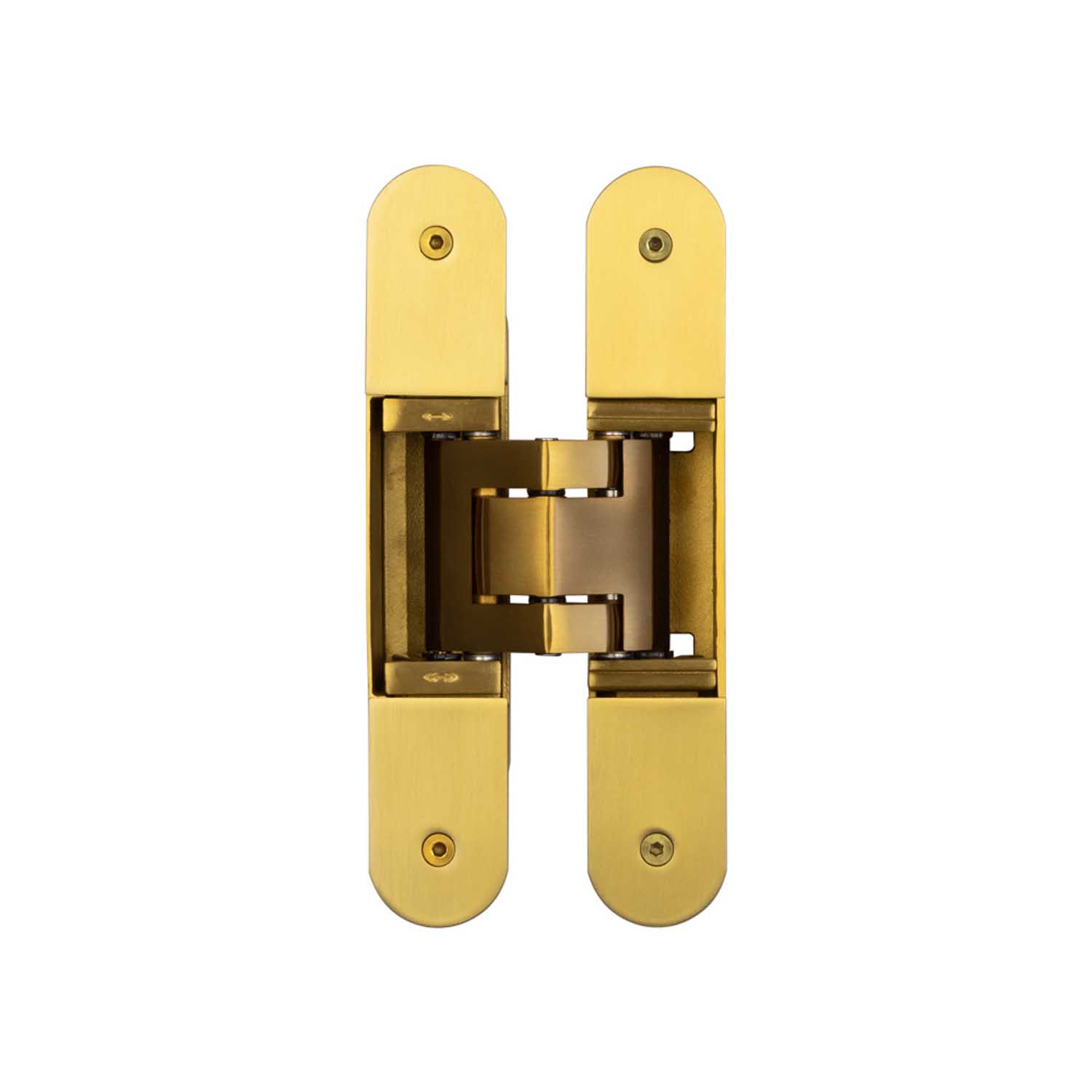

Ghost 3D Concealed Hinges- CH100SB

Key Features:

• Suitable For: Flush, unrebated quality timber doors
• Finish: Satin Brass
• 3D Adjustable: Height, depth and lateral movement
• Material Grade: 304g Stainless Steel
• Concealed Fixings: Removeable Cover Plates
• Fire Rated: FD60 w/ 2mm Graphite Flexifire (Sold Separately)
• Door Weight: Up to 120KG when using 3 hinges
• Maintenance Free
• Fixings: 2 Allen keys 8No SSS wood screws 4No cover plates
• Suitable for: Internal - Residential / Commerical
• Mechanical Warranty: 5 years

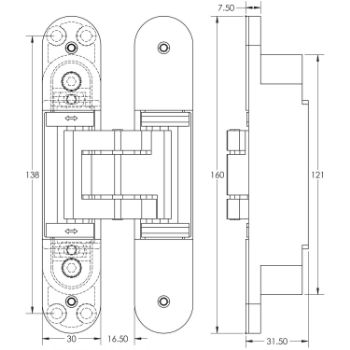

Dimensions:

• Size: 160mm
• Overall Size: 160 x 31.5 x 76.5mm
• Projection: 7.5mm
• Fixing Centres: 138mm
• Thickness: 7mm
• Suitable Door Thickness: 35 – 54mm
