Ghost 3D Concealed Hinges- CH60SIL

SKU: CH60SIL
Manufacturer part number: CH60SIL
GTIN: 5029873567019
£38.66 inc VAT

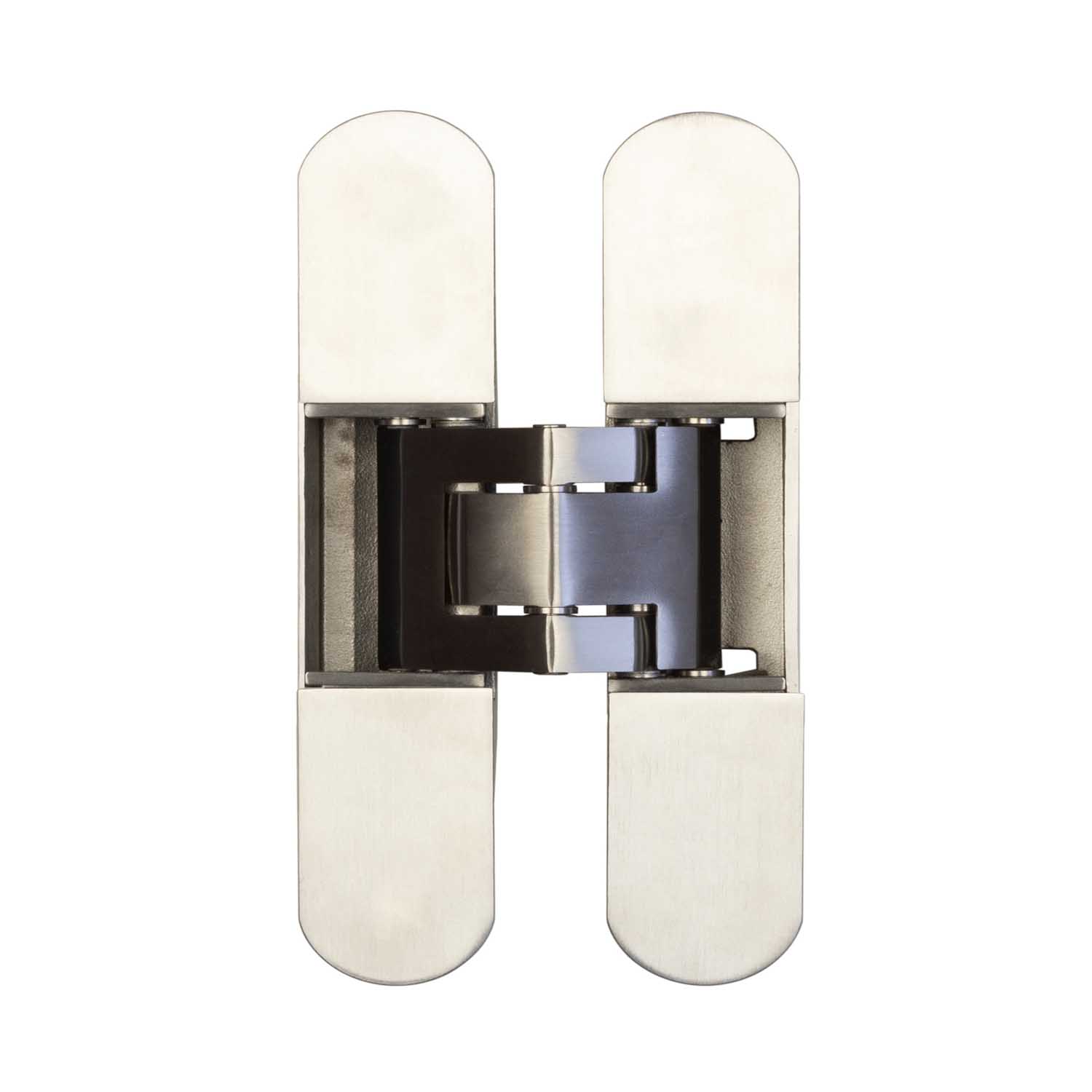

Concealed hinge in silver finish
+ -

These concealed hinges in a silver finish are designed for reliable everyday performance on timber doors. The mechanism stays hidden when the door is closed for a clean look.

Product Features & Specifications

Ghost 3D Concealed Hinges- CH60SIL

Product details:

  • Suitable for flush, unrebated quality timber doors
  • Finish: Silver
  • 3D adjustable – height, depth and lateral movement
  • Material: Zinc
  • Concealed fixings with removable cover plates
  • Fire rated: FD30 (with 1mm Graphite Flexifire – sold separately)
  • Door weight capacity: up to 60kg (when using 3 hinges)

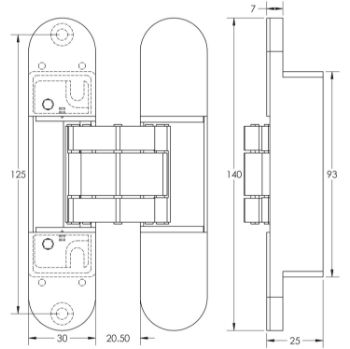

Dimensions

  • See product name for dimensions.

Fitting & Compatibility

Check the hinge size, door thickness and weight against the specifications before fitting. For fire door installations, follow the relevant certification requirements. Always follow the manufacturer’s guidance on the number of hinges required for the door weight and use.
