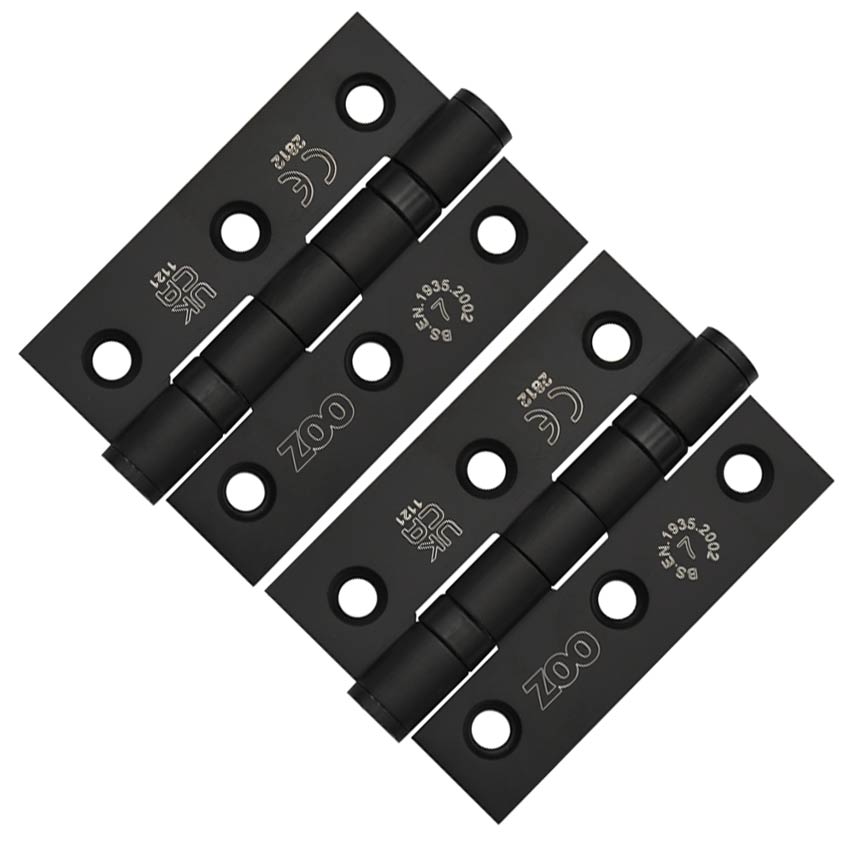

Grade 7 - 76mm x 50mm x 2mm Ball Bearing Hinge In Matt Black - ZHSS232-FD-MB

The 3” x 2” ball bearing door hinge is part of the ZHS range by ZOO Hardware and comes in a matt black finish.

Designed for smooth, precise operation, this high-quality hinge is suitable for standard doors as well as 30-minute fire-rated doors.

Use two hinges per door for lightweight hollow-core doors, and three hinges for heavier or fire-rated doors.

Each pack includes a pair of hinges and matching screws.

KEY FEATURES

• Dimensions: 76mm x 50mm x 2mm ( 3inch w x 2 inch h).
• Grade 201 Stainless steel.
• Inline drilled.
• Successfully tested in accordance with the requirements of BS EN 1935:2002. Grade 7.
• Successfully tested in accordance with the requirements of BS EN 1634-1, suitable for use on 30 minute timber fire doors.
• UKCA Marked (Certificate AC7987).
• CE Marked (Certificate AC7986).

INTENDED USE

These hinges are for use on standard internal doors and 30-minute fire doors that are 35mm thick. Standard fire doors are 44mm thick and generally require a large hinge.
