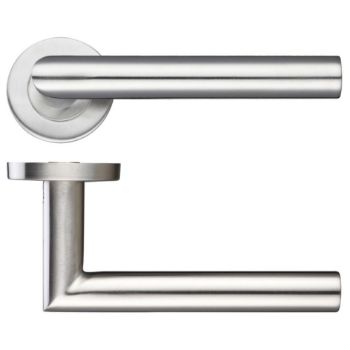

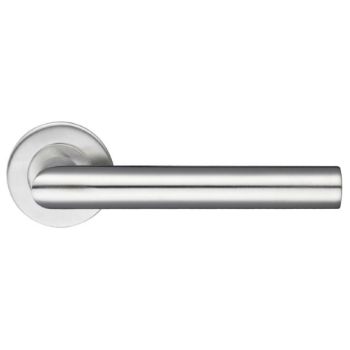

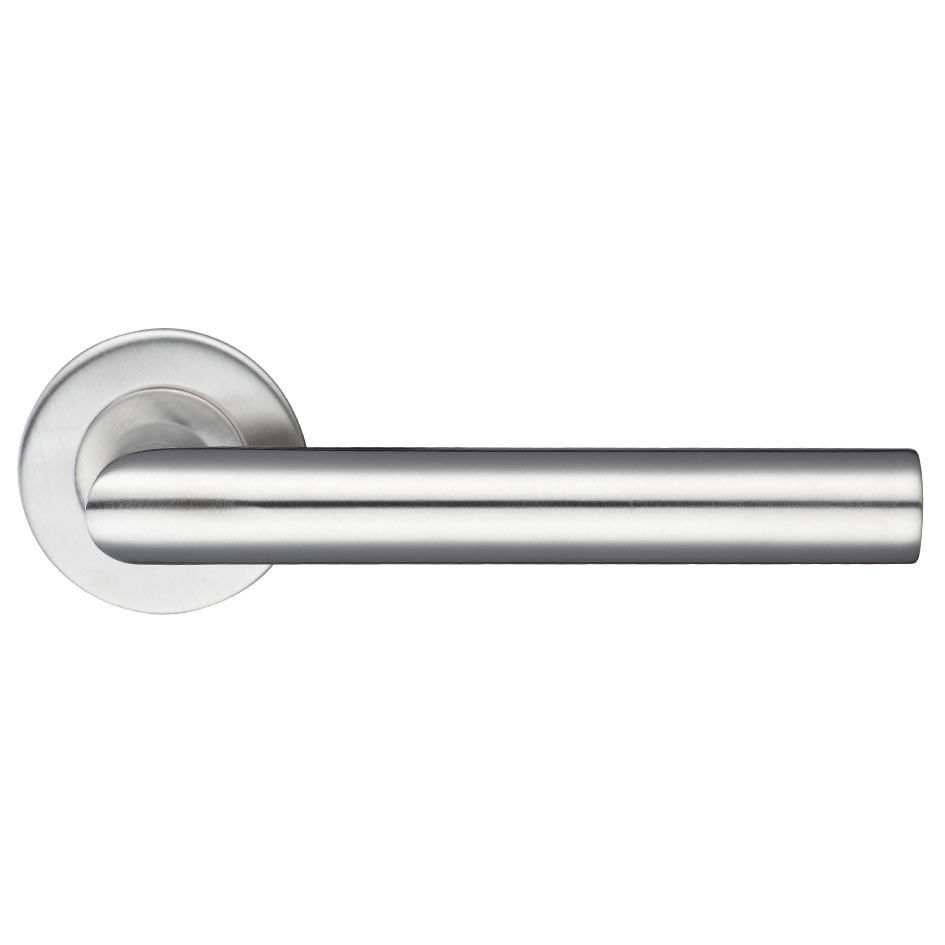

Mitred Door Handle - ZCS2010SS

Product Description

• Manufactured from Grade 201 stainless steel for strength and durability
• Fitted on a 52mm x 8mm push-on sprung rose for a clean, concealed finish
• Features a Heso spindle for secure and reliable operation
• Supplied with bolt-through and wood screw fixings for installation
• Suitable for doors 35–54mm thick
• Successfully fire tested to BS EN 1634-1 standards
• Suitable for use on 30 and 60-minute timber fire doors
• Successfully mechanically tested to BS EN 1906:2010, achieving Grade 3 Category of Use

Dimensions

• Lever Length: 135mm
• Projection:  60mm
• Lever Diameter: 19mm
• Rose Diameter: 52mm
• Rose Thickness: 8mm
