Frequently Asked Questions

What are latch, lock and bathroom handles?

Do your prices include V.A.T.?

How can I contact you?

Are your handles supplied in pairs?

Are your handles supplied with locks/latches?

What locks or latches do I need?

When will my order arrive?

How to work out what size lock or latch I need?

What door hinges do I need?

What are Euro profile, Oval Profile and Standard Key Escutcheons

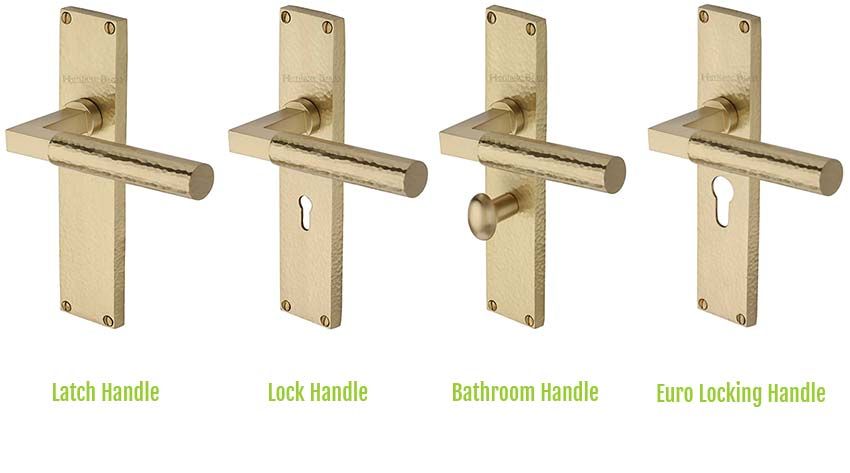

What are latch, lock, euro lock and bathroom handles?

A latch door handle is supplied on a plain backplate for standard internal doors, a lock door handle has a cut-out in the backplate for use on a door with a lock, and a bathroom door handle has a turn and release integrated into the handle for a privacy function. Euro locking handles are for use with euro sash locks in conjunction with a euro cylinder lock.

Example;

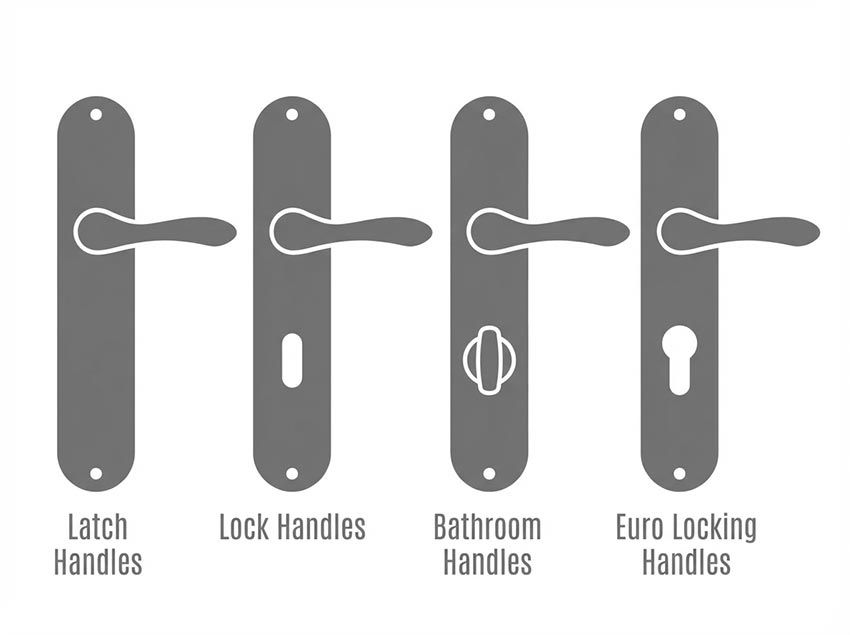

Types of Door Handles

Go to top






Do your prices include V.A.T.?

Yes! All prices include V.A.T. at the current rate of 20%. You can also view prices excluding VAT by selecting this option from the drop-down option at the top of any page.

Go to top








How can I contact you?

Our full contact details can be found on the 'contact us' page. We can be contacted by the following methods:

By telephone during the hours of 9.00 am until 5.00 pm Monday to Thursday, 9.00 am to 4.00 pm on Friday.

By email, our primary e-mail addresses are;

sales@simplydoorhandles.co.uk

customercare@simplydoorhandles.co.uk

Go to top






Are your handles supplied in pairs?

Yes, all handles excluding centre door knobs are supplied in pairs with fixings and spindle. When you order 1, you will receive 2 individual handles to complete 1 door. Please see our 'specifications' tab when viewing any product for details of the supplied quantity and other details. Please note all kitchen cabinet door handles and knobs plus flush pull handles are sold in single units.

Go to top






Are your handles supplied with locks/latches?

No, all handles are supplied without locks/latches. This is the standard in the UK as there are different sizes and types of locks used for different applications that need to be purchased separately. If you already have locks or latches in your doors then providing they are in good working condition, these in most cases can be used with new handles. The standard spindle (the bar that connects the handles) size in the UK is 8mm (actually 7.9mm), providing your current locks accept an 8mm bar width spindle, you should not have any problems fitting new handles.

Go to top






What locks or latches do I need?

The types of locks or latches you need are the same for door handles on a backplate, door handles on a rose and door knobs. For information on lock and latch sizes please see FAQ 'What backset size do I need?'

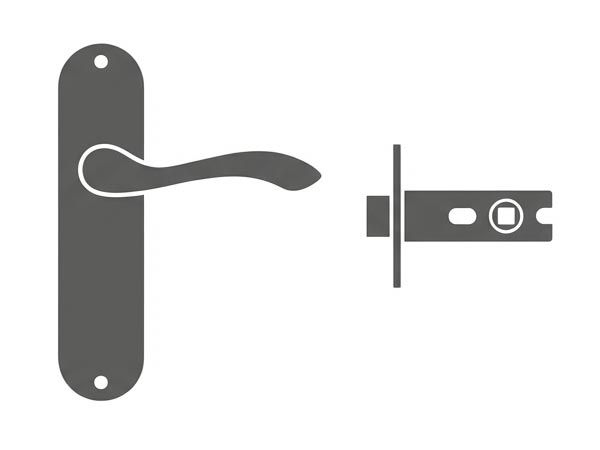

Internal latch doors.

All non-locking internal doors need a tubular latch, we supply a contract latch or a better quality high-quality latch, the difference being the overall quality and spring tension. The one that you purchase will generally be determined by your budget. We always recommend the quality tubular latch as this feels solid and smooth in use whilst providing a long working lifespan. For un-sprung door knobs (all good quality door knobs are un-sprung so they are not too stiff to turn!) we also recommend the high-quality latch, please see below for recommended latch sizes.

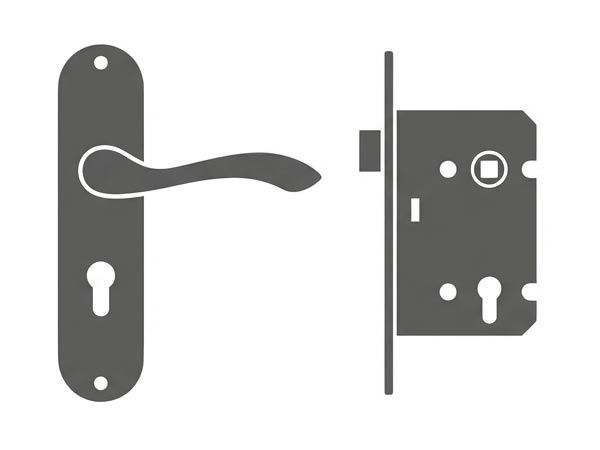

Locking Doors.

Locking doors will need a 3 or 5 lock as below.

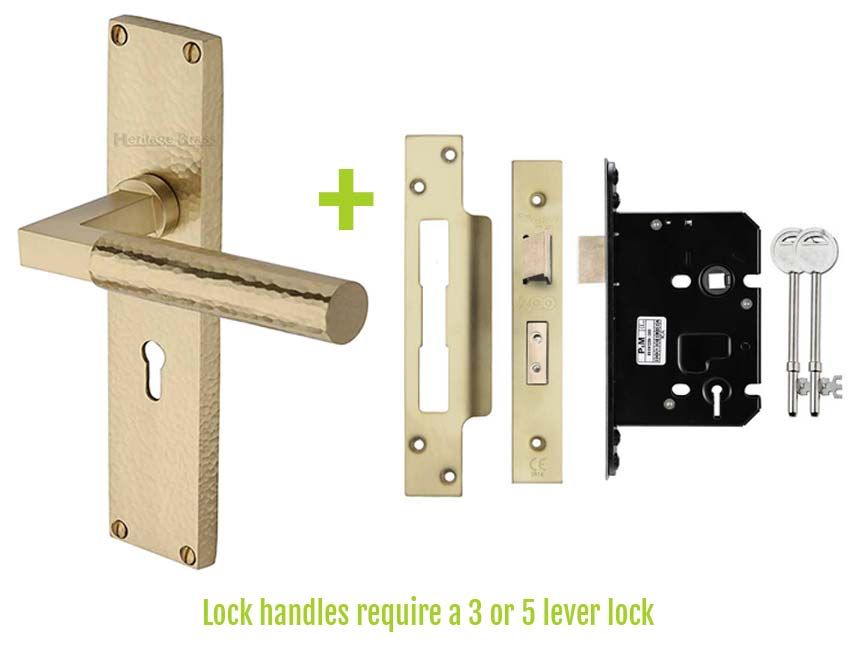

You will need a 3 or 5 lever lock for lock handles

External locking doors. All external doors must have either a BS-certified 5-lever sash lock or a rim cylinder night latch used with a BS-certified 5-lever deadlock. This is a minimum security standard required by most UK household insurance companies. If you do not have these fitted to your external doors your insurance company may contest your claim in the event of a break-in.

Internal locking doors. Doors that are required to lock from a key internally can use a 3 lever sash lock providing they are not exit doors. We do not recommend locking internal doors for fire safety reasons.

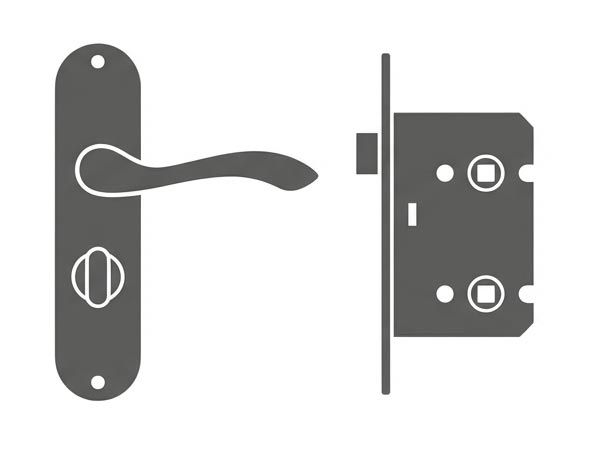

Bathroom doors.

Bathroom Door Handles Require a Bathroom Door Lock

All bathroom door handles supplied by Simply Door Handles require a bathroom lock. We supply a high-quality bathroom lock and a contract bathroom lock, the difference being quality. The quality lock is engineered to a high standard that will feel solid and smooth in use and provide a long working lifespan, the contract lock is engineered to a price. For door handles on a round rose, when using with a turn and release you may use any of the above bathroom locks or simply add a tubular bathroom deadbolt. Doing this lets you position the turn and release independently of the handle.

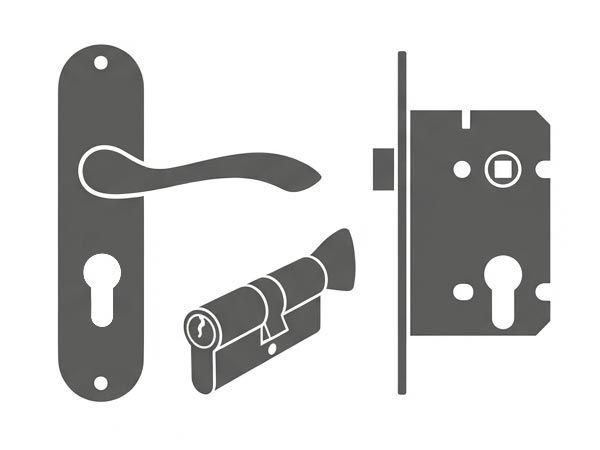

Euro Cylinder locking doors.

Euro lock handles require a euro cylinder and euro sash lock

Euro locking handles require two additional locks. The benefits of this handle and lock arrangement are you have smaller keys, the locks are easier to change when required (you are only removing the euro cylinder barrel). However, the main benefit is if the door is fitted with a cylinder and turn, a bedroom door for example can be locked and unlocked by the turn only that is fitted to the inside of the room. This is far more convenient in daily use and it meets most UK building regulations requirements for fire safety reasons.

We supply a high-quality architectural euro sash lock or a contract euro sash lock which offers convenience locking without the need for security. Plus you will need a euro cylinder to complete the lock.

Go to top






When will my order arrive?

Please see our delivery page.

Go to top






What size lock or latch do I need?

All UK locks and latches are quoted and sold based on the total depth measurement as dimension 'Y' on the diagram below. The backset size on a lock or latch case is the distance from the edge of the door to the centre of where the handle spindle passes through the door (or the key/turn where applicable), this is dimension 'X' below. For example, a 2 1/2 inch or 64mm latch has a backset size of 44mm and a total depth of 64mm.

Drawing of Latch Sizes
  • For 64mm Latch, X = 44mm (back-set), Total depth Y is 64mm
  • For 76mm Latch, X = 57mm (back-set), Total depth Y is 76mm
  • For 102mm Latch, X = 82mm (back-set), Total depth Y is 102mm
  • For 127mm Latch, X = 108mm (back-set), Total depth Y is 127mm
  • For 152mm Latch, X = 134mm (back-set), Total depth Y is 152mm

These measurements apply to all door locks, bathroom locks and latches we supply. When replacing existing locks or latches, the important dimension is to purchase the same as what X measures on your current doors.

Generally, rules apply as follows:

For door knobs you need a minimum of 3" case depth locks, we do however recommend 4" or 104mm latches providing that these fit your doors. This is to prevent your hand from scraping on the door frame when closing the door.

Fire doors generally have a deeper frame rebate (overlap around the door!). This means you need a minimum of 3" case depth locks.

When replacing old locks, the critical dimension is X as above, but this can vary by 3 to 4mm, so don't worry if you are slightly out. This is needed to prevent the filling and redecoration of the door.

Go to top






What door hinges do I need?

Generally, all external doors are 44mm thick and fire doors are 40mm thick, these doors require 4" or 102mm door hinges and require 3 hinges per door. (All door hinges are priced and supplied in pairs; when you purchase a quantity of 1 unit, you will receive two individual hinges).

For internal (non-imperial sized doors) you will normally fit 3" or 76mm door hinges, these doors are generally 35mm thick and a 4" hinge leaf will be too wide. For doors over 20kgs most door manufacturers recommend fitting three hinges per door, we advise that you consult your door supplier if unsure.

Go to top






What are Euro profile, Oval Profile and Standard Key Escutcheons

An escutcheon is simply a keyhole cover, the different types of escutcheons you will need depends on the type of lock or cylinder used on your door. Simply choose the one that matches your lock as below!

Different types of keyhole escutcheons

Go to top
