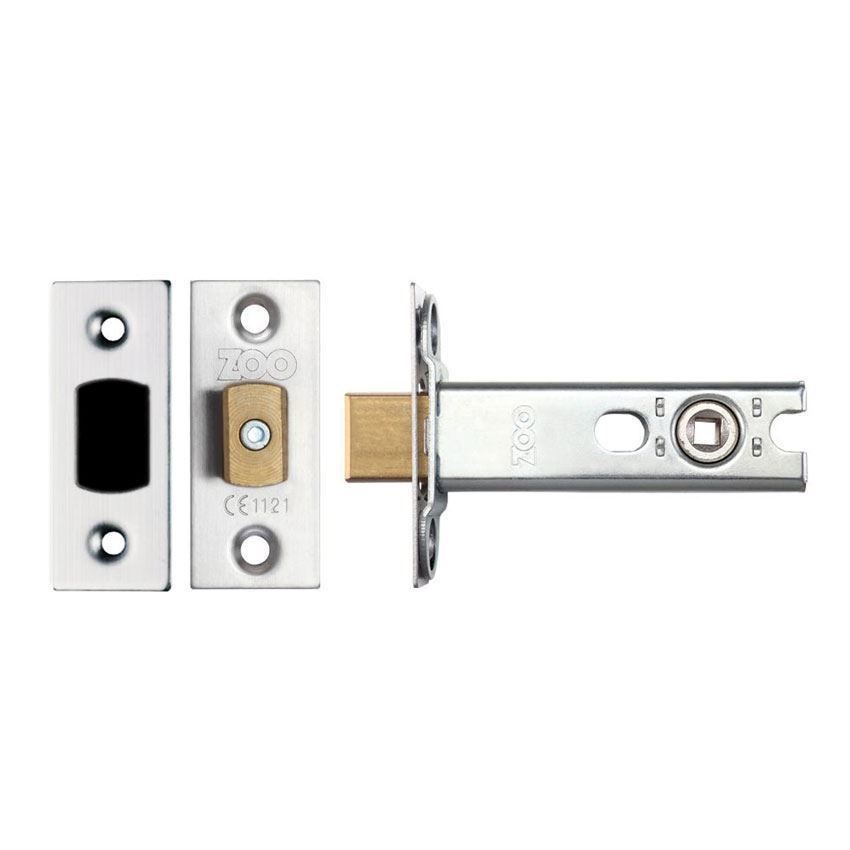

Tubular Bathroom Deadlock - ZTDA

• A quality-engineered product designed for use with all turn and release mechanisms available online and provides the smooth operating lock function on bathroom doors.
• Accepts standard 5mm bathroom turn spindles.
• Accommodates bolt-through fixings.
• Supplied with a 10-year warranty.
• Available in all popular deadlock and door frame faceplate finishes with square-end strikers and faceplates.

• For 64mm bolt, X = 44mm (back-set), depth Y is 64mm
• For 76mm bolt, X = 57mm (back-set), depth Y is 76mm
• For 102mm bolt, X = 82mm (back-set), depth Y is 102mm
• For 127mm bolt, X = 108mm (back-set), depth Y is 127mm
• For 152mm bolt, X = 134mm (back-set), depth Y is 152mm

IMPORTANT

Tubular bathroom deadbolts will not fit door handles on a backplate, the faceplate for the latch and deadbolt will overlap. These items are for use with a separate WC turn and release only.
